An optional auxiliary water bladder allows for the storage of both wastewater and fresh water in the same space, extending operational time. This setup enables the debris tank to be used solely for water-separated solids, significantly increasing work efficiency. The Stripe Hog™ SH8000 can be built on domestic or international truck chassis to meet local road compliance requirements.
z-z908138006661.webp){kind=icon}
HOG manufactures a variety of vehicles such as the Stripe HOG, Thermo HOG, Epoxy HOG, Rumble HOG, Grinder HOG, and Surface HOG. We have a wide array of options that are PTO engine-driven, auxiliary engine-driven, as well as non-CDL options for water blasting, pavement marking, and grinding/grooving.
Why Stripe Hog?
The award-winning Stripe HOG efficiently and thoroughly removes all types of pavement markings from both asphalt and concrete surfaces, with minimal negative impact to the surface. The Stripe HOG operates using high-pressure 40,000 psi water jets and a powerful vacuum recovery system that leaves the road or runway clean and nearly dry. The resulting debris is quickly dewatered through a patented process, allowing for easy disposal from the debris tank.
With large water and debris tank capacities, the SH8000 can operate continuously for several hours before requiring dumping or refilling. Its user-friendly dumping system and in-cab remote control panel allow for operation by a single person, saving both time and labor costs.
The Stripe HOG SH8000 is compatible with the HOG Tusk, a cleaning head equipped with PCD (Polycrystalline Diamond) grinding teeth and 40,000 PSI high-pressure water jets. The HOG Tusk can operate in grinding-only mode, water-only mode, or a combination of both, enabling it to remove markings twice as fast while using only half the amount of water.
The Stripe Hog™ SH8000 is a water-based cleaning and vacuum recovery system designed for both asphalt and concrete roads and airfields. The Stripe Hog SH8000 can be ready to exit the runway in under one minute.
The SH8000 system is equipped with high-pressure water nozzles capable of generating pressure from 1,000 psi (69 bar) up to 40,000 psi (2,750 bar), with a maximum flow rate of 12 gpm (45.4 lpm). It uses clean water without the need for chemicals or cleaning agents and includes a vacuum recovery system.
Our water separation system efficiently separates water from solids and filters recovered water down to 100 microns, ensuring safe and easy disposal of solid debris.
The SH8000 system is equipped with high-pressure water nozzles capable of generating pressure from 1,000 psi (69 bar) up to 40,000 psi (2,750 bar), with a maximum flow rate of 12 gpm (45.4 lpm). It uses clean water without the need for chemicals or cleaning agents and includes a vacuum recovery system.
Our water separation system efficiently separates water from solids and filters recovered water down to 100 microns, ensuring safe and easy disposal of solid debris.
Specifications
| OPERATING PRESSURE: | 40,000 PSI (2,750 BAR) |
| FLOW RATE: | 12 GPM (45.5 LPM) |
| BLASTING WIDTHS: | 6”-48” (15.2-121.92 cm) |
| WATER CAPACITY: | 3,150 gallons (11,924 liters) |
| DEBRIS CAPACITY: | 1,800 gallons (6,813 liters), 4,950 gallons (18,737 liters) with optional bladder bags. |
| VACUUM: | 6” @ 1,400 CFM or 8” @ 2,350 CFM |
| RUBBER REMOVAL RATE: | 40,000 sq. ft/hr (3,716 m2/hr) |
| MARKING REMOVAL RATE: | 6,500 linear ft/hr (1,981 linear meters/hr) |
With a large water and debris tank capacity the SH8000 can stay on the job for several hours before dumping or replenishing with fresh water. An easy-to-use dump system and a remote-control panel in the cab make this truck a one-person operation…saving both time and money.
The Stripe HOG SH8000 is HOG Tusk compatible. The HOG Tusk is a single head that contains PCD grinding teeth and 40,000 PSI water jet nozzles. The HOG Tusk can grind only, water blast only, or perform both functions simultaneously, allowing you to remove markings at twice the speed using only half of the required water.
Our optional patented bladder tanks allow you to carry both fresh water and debris water in the same footprint allowing you to use the debris collection box for dewatered solid material only, radically increasing up time. The Stripe Hog™ SH8000 can be built on various domestic and international truck chassis to meet the road worthiness criteria in your area.
The Stripe HOG SH8000 is HOG Tusk compatible. The HOG Tusk is a single head that contains PCD grinding teeth and 40,000 PSI water jet nozzles. The HOG Tusk can grind only, water blast only, or perform both functions simultaneously, allowing you to remove markings at twice the speed using only half of the required water.
Our optional patented bladder tanks allow you to carry both fresh water and debris water in the same footprint allowing you to use the debris collection box for dewatered solid material only, radically increasing up time. The Stripe Hog™ SH8000 can be built on various domestic and international truck chassis to meet the road worthiness criteria in your area.
ZIROCCO

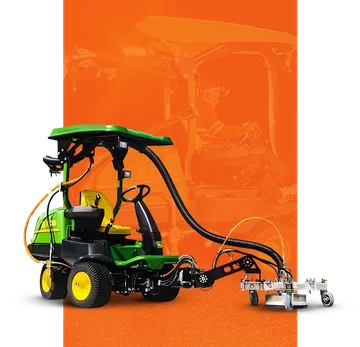

HOG SK3000

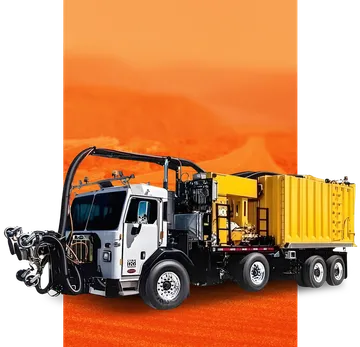

HOG SK8000
HOFMANN

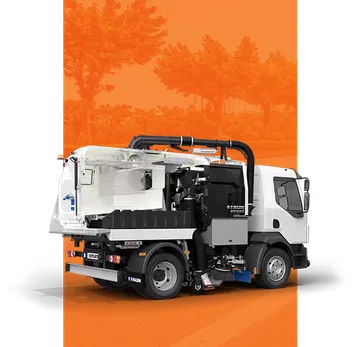

FAUN VIATEC

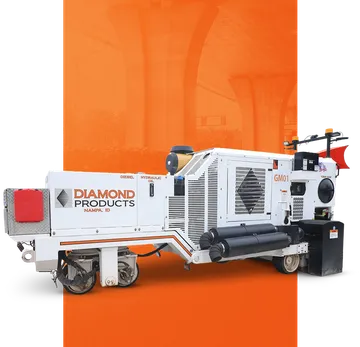

DIAMOND
